300mA, low IQ, low dropout capacitor free voltage regulator with enabling function

Brand: TI (Texas Instruments)

Batch number: 21+

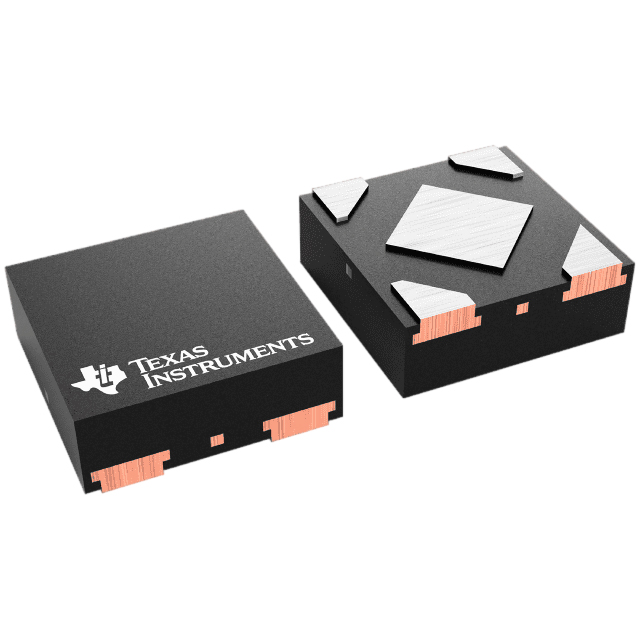

Encapsulation: X2SON-4

Quantity: 2500

Installation style: SMD/SMT

Package/Box: X2SON-4

Output voltage: 2.85 V

Output current: 300 mA

Number of output terminals: 1 Output

Polarity: Positive

Static current: 34 uA

Maximum input voltage: 5.5 V

Minimum input voltage: 1.4 V

Output type: Fixed

Minimum operating temperature: -40 ° C

Maximum operating temperature:+125 ° C

Return voltage: 122 mV

Series: TLV733

Encapsulation: Cut Tape

Package: MouseReel

Encapsulation: Reel

Height: 0.4 mm

Length: 1.05 mm

Working temperature range: -40 C to+125 C

Product: LDO Voltage Regulators

Width: 1.05 mm

Trademark: Texas Instruments

Maximum rebound voltage: 290 mV

PSRR/Ripple Suppression - Typical Value: 50 dB

Voltage accuracy: 1%

Line adjustment rate: 1 mV

Load regulation: 16 mV

Working power supply current: 34 uA

Product type: LDO Voltage Regulators

Factory packaging quantity: 3000

Subcategory: PMIC - Power Management ICs

Unit weight: 1.100 mg

Marketable location: Nationwide

Type: Linear Regulator

Model: TLV733285PDQNR
