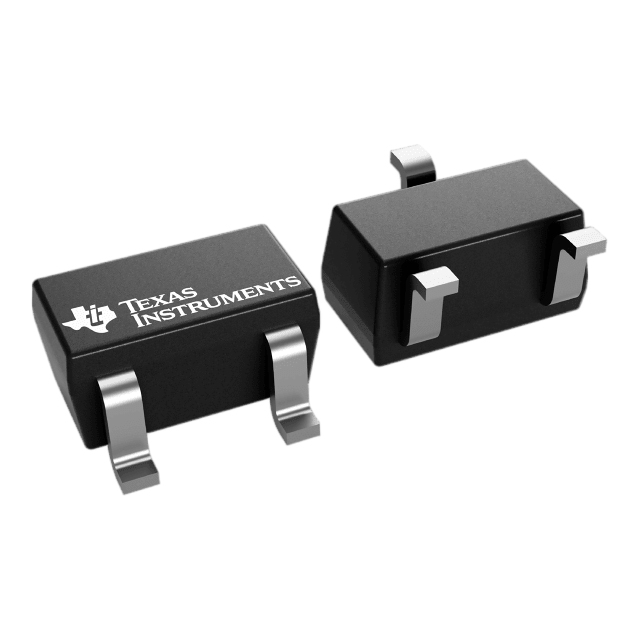

TPS3809L30DBVR

 Tip: Click on the image to enlarge

Brand: TI

Batch number: 1945+

Encapsulation: SOT23-3

Quantity: 19800

Manufacturer: Texas Instruments

Product Type: Monitoring Circuit

RoHS: Yes

Installation style: SMD/SMT

Package/Box: SOT-23-3

Threshold voltage: 2.64 V

Number of monitored inputs: 1 Input

Output type: Active low, Push pull

Manual Reset: No Manual Reset

Watchdog Timer: No Watchdog

Battery backup switch: No Backup

Reset delay time: 200 ms

Maximum power supply voltage: 6 V

Minimum operating temperature: -40 ° C

Maximum operating temperature:+85 ° C

Series: TPS3809L30

Features: Internal Hysteresis

Height: 1.15 mm

Length: 2.9 mm

Working temperature range: -40 C to+85 C

Output current: 20 mA

Width: 1.6 mm

Overvoltage threshold: 2.7 V

Undervoltage threshold: 2.58 V

Working power supply current: 9 uA

Working power supply voltage: 3 V

Pd power dissipation: 437 mW

Minimum power supply voltage: 2 V

Unit weight: 8 mg
